Equipment

Test Rigs

The Hydropuls PZ 200/400 is a universal, hydraulic driven testing plant for both static and dynamic full scale experiments. The machine is full cardanic connected to a gantry frame which is attached to a base plate foundation. The foundation is completely isolated from the building.

Max static power: ±200 kN
Max dynamic power: ±160 kN
Max stroke: ±200 mm
internal and external power measuring systems
Controller: EPL dynaSax D2
Software: dynaSax D2

Manufacturer: TIRA WPM Leipzig

Clear width: 3.5 m
Clear height: 3.0 m

This machine is especially useful for static and dynamic experiments, uniform and variable load range, e.g. block programs, and random loads on semi complex full scale specimens.

Resonance frequency machine Power Swing 100 MAG is a universal electromagnetic excited resonance test plant for the execution of oscillating tension/pressure, bending and/or torsional experiments at components and material samples.
Max static load: ±100 kN
Max dynamic amplitude: ±50 kN
Max dynamic stroke: ±2 mm
Frequency testing range: up to 300 Hz

Manufacturer: SincoTec, Clausthal – Zellerfeld

Width of test space (clear passage between columns): 530 mm
Height of test space (distance force transducer – work table): 660 mm

This machine is preferably used for the determination of SN-curves and offers, additionally, fatigue life investigation; e.g. block program or random loads.

Resonance frequency machine Power Swingly 5MOT is a universal wheel excited resonance test plant for the execution of oscillating tension/pressure, bending and/or torsional experiments at components and material samples.
Max static load: ±5 kN
Max dynamic amplitude: ±2,5 kN
Max dynamic stroke: ±10 mm
Frequency testing range: up to 110 Hz

Manufacturer: SincoTec, Clausthal – Zellerfeld

Width of test space (clear passage between columns): 550 mm
Height of test space (distance force transducer – work table): 670 mm

This machine is preferably used for the determination of SN-curves of small specimens and offers, additionally, fatigue life investigation; e.g. block program or random loads.

Measuring Plants

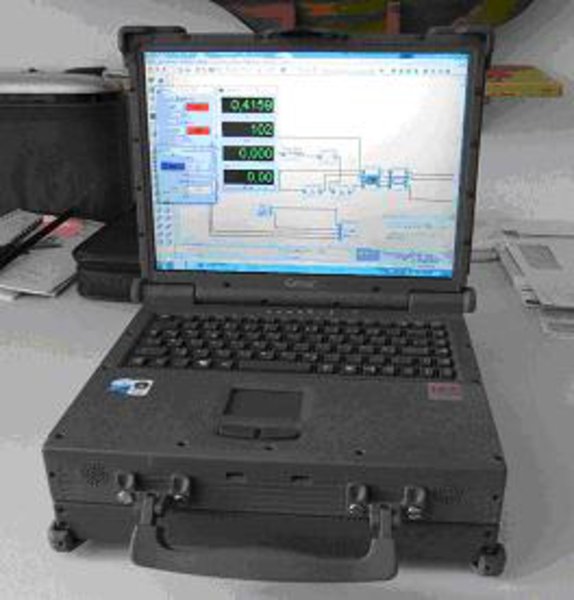

The Mobile Measuring Device M.A.R.S. 516-N is produced by J.E.T Systemtechnik for In Situ measurements.

The universal applicable computer is an all-metal machine with self-sustaining electrical power supply. It is vibration resistant and splash water protected.

Measurements of:
6 full Wheatstone bridges (strain gauges)
6 acceleration signals (ICP – channels)
4 voltage- and frequency inputs (±30V)

Software: DASYLab 2020



The machine's predominant use is for analyses of different operating conditions: e.g. vibration analyses, speed- and power measurements.

Vibration measurements are currently assessed according to e.g. ISO 6954, ISO 10816, DNV Comfort Class, ABS Comf, GL Harmony Class and GL Machinery Installations.

2 local signal recorder MGCPlus by HBM are a laboratory measuring equipment for simultaneous recording of up to 128 measuring points each at a sample rate of max 9600 Hz.

16 slots for measuring of, for instance, linear strain gauges, Wheatstone half and full bridges, inductive testing devices.
Connected with a measuring computer with the Software „Catman AP“ (Version 3.4)

The recorder helps controlling the distortion-, temperature-, acceleration- and torsion sensors as well as strain gauges.

External Sensors

Normally, the following sensors are used:

Acceleration sensor of IMI:
Uniaxial sensor (0,17 Hz to 19 kHz, max acceleration 343 µm/s²)
Triaxial sensor (0,5 Hz to 8 kHz, max acceleration 3434 µm/s²)

Inductive sensor of HBM:
W10TK (±10 mm) (caliper)
W20TK (±20 mm) (caliper)
WA50 (50 mm) (caliper)
WA100 (100 mm) (caliper)
WA200 (200 mm)

Force measuring devices 2, 5, 10, 20, 50, 100, 200 kN of HBM

Further Equipment

The laboratory floor is a slot plate, constructed as a Strong Floor. The floor is based on 12 piles, each founded 12 m deep and isolated from the building.

Length: 10.0 m
Width: 4.8 m
with lengthwise slots in distances of 800 mm

DEMAG crane SWL 500 Kg,
operating over the entire length of the laboratory

Lab entrance opening: WxH: 2.47x2.27m
